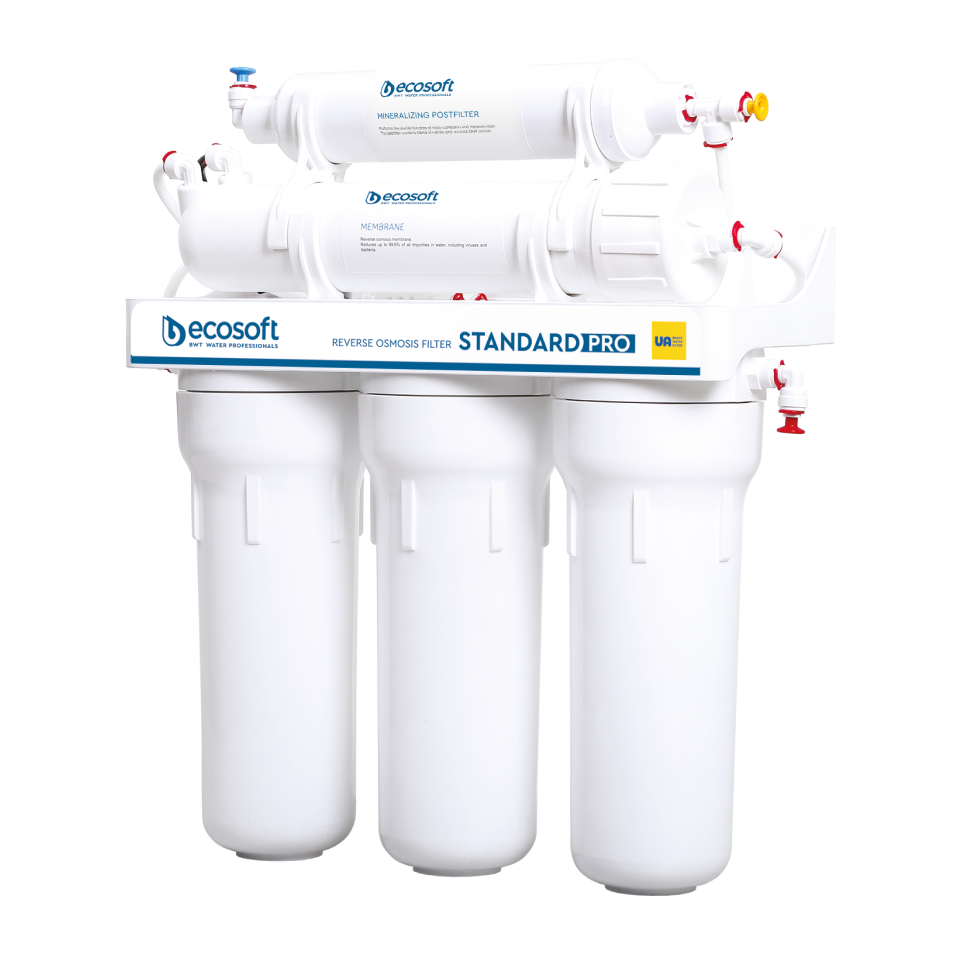

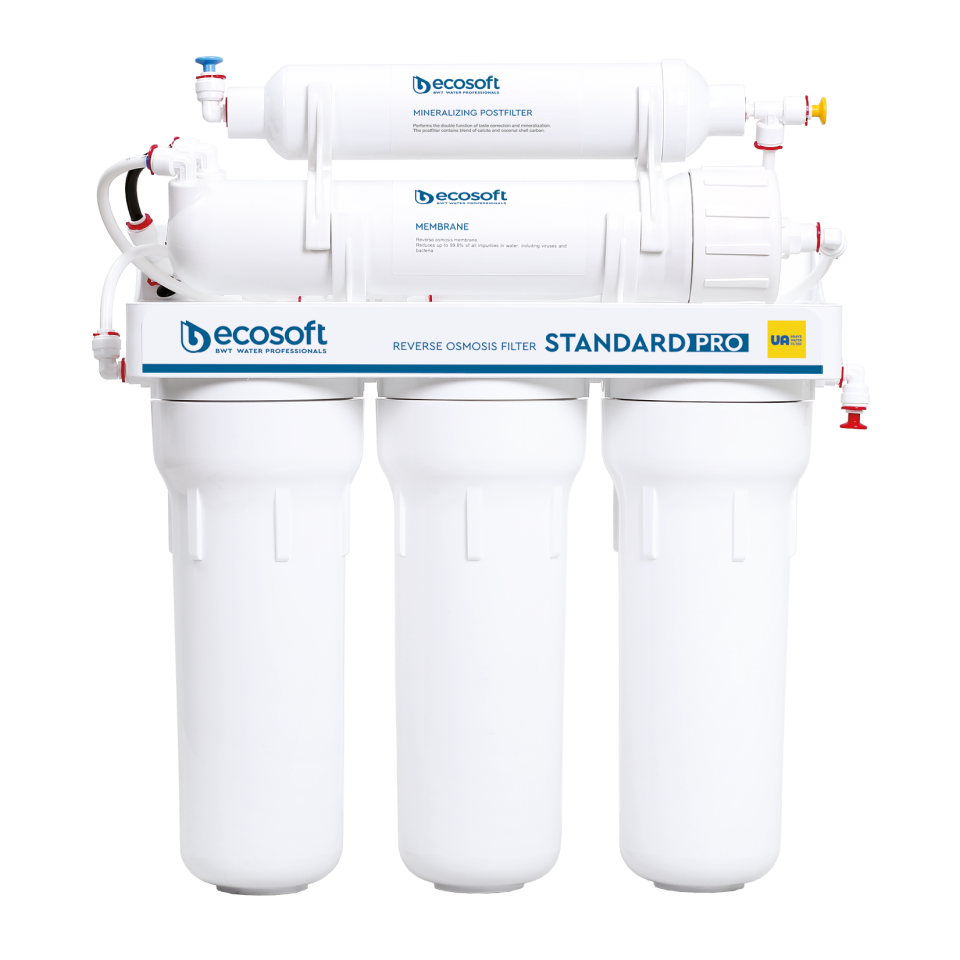

STANDARD PRO RO System

Product description:

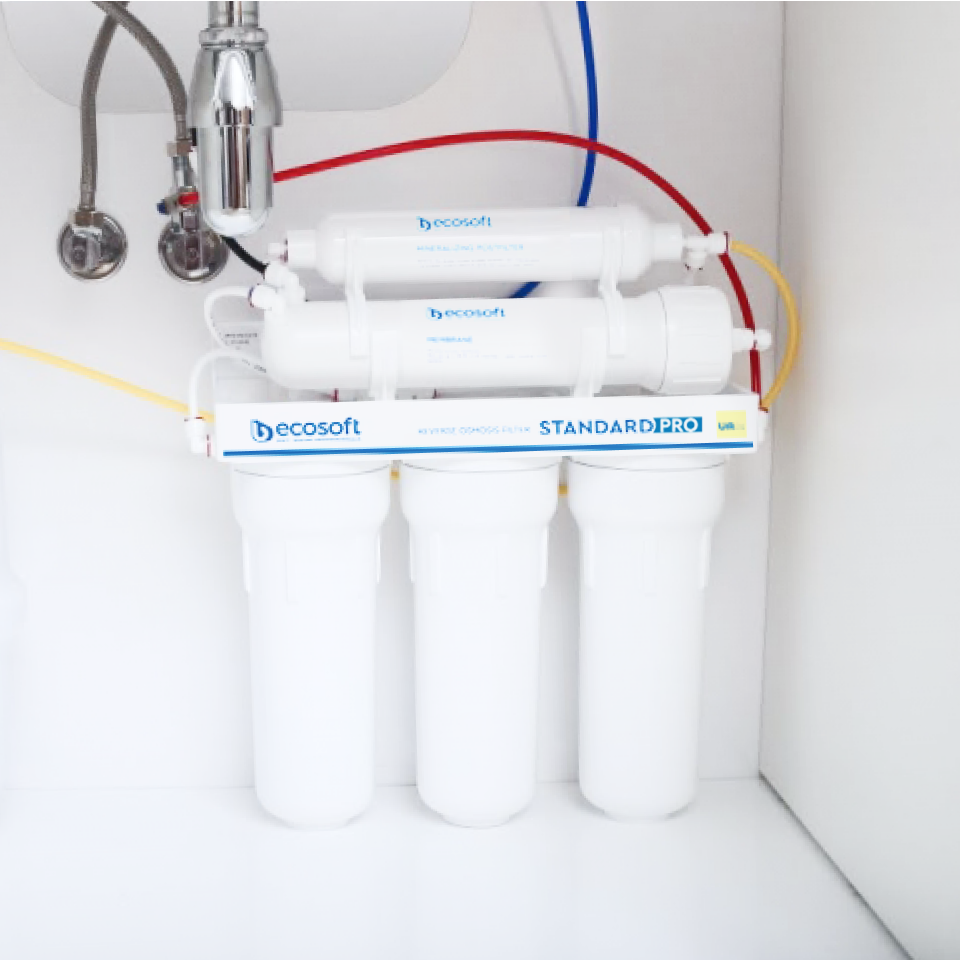

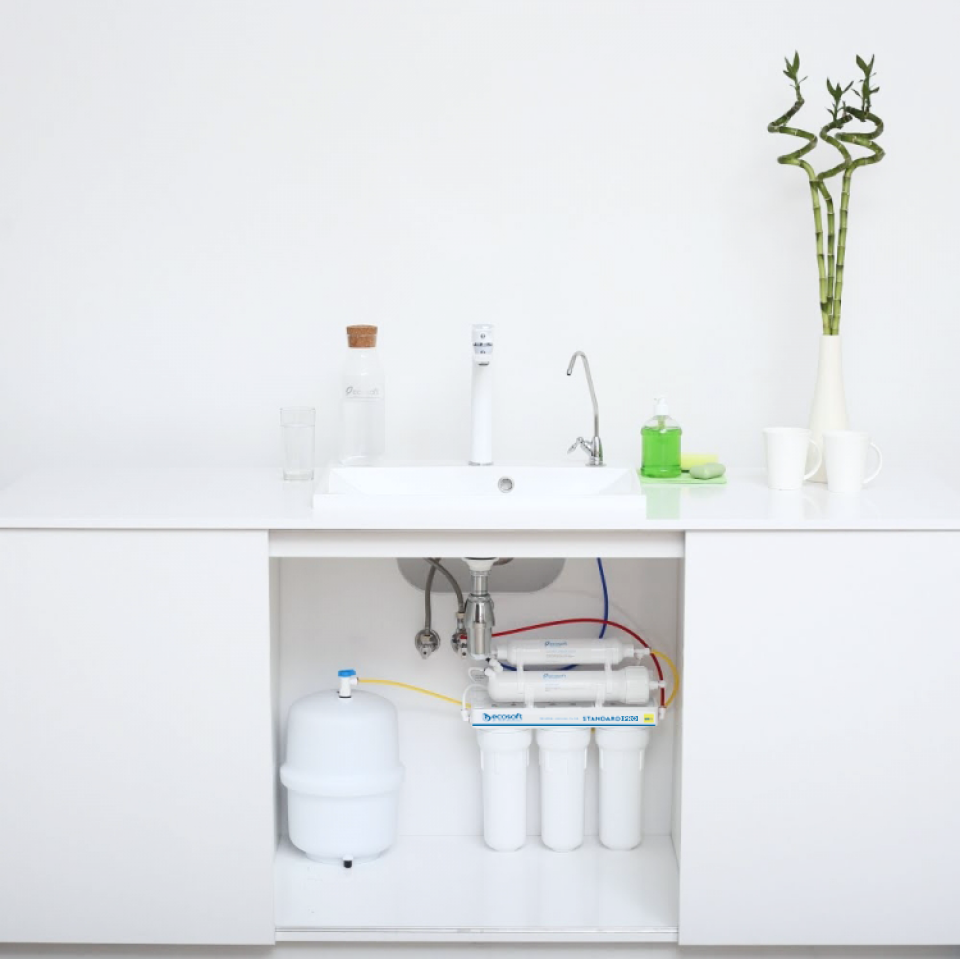

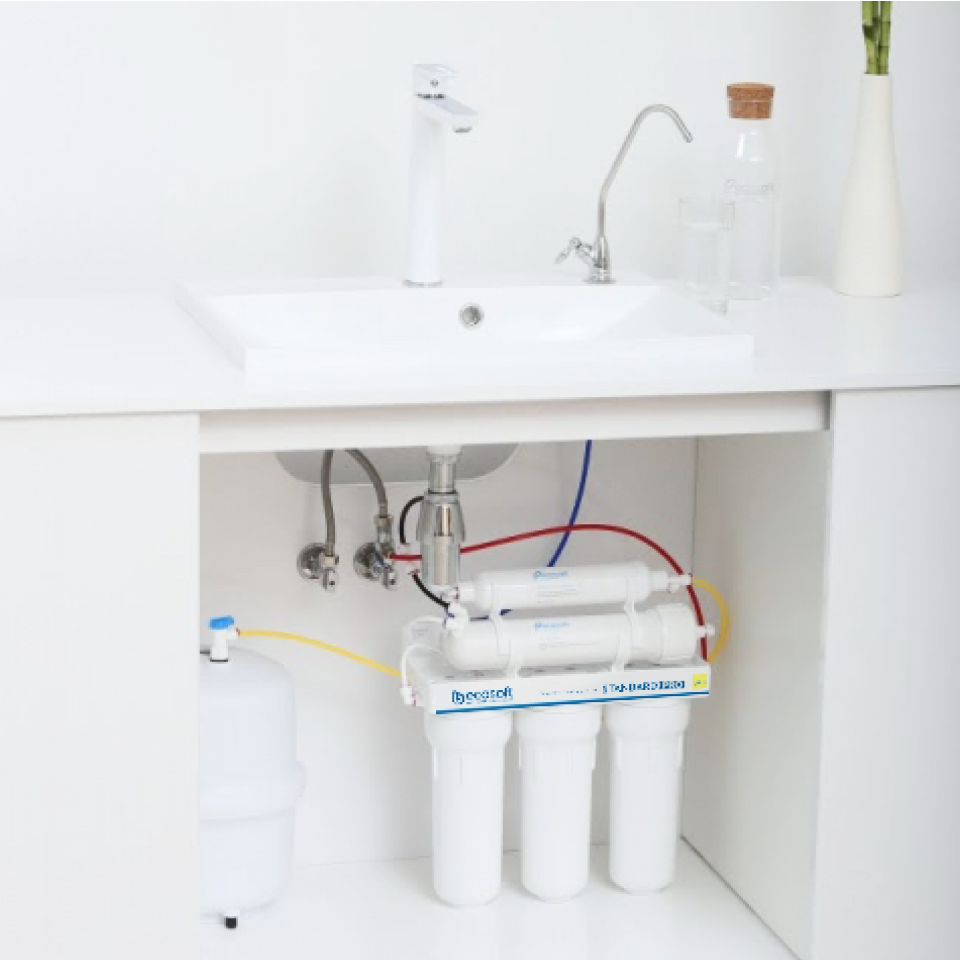

The Ecosoft STANDARD PRO Reverse Osmosis System is a reliable and affordable solution for ensuring clean, great-tasting, and safe drinking water in your home. With its advanced 5-stage purification process and built-in mineralization, this system removes up to 99.8% of common water contaminants including PFAS, chlorine, bacteria, heavy metals, and limescale. At the same time, it enriches your water with essential minerals like calcium and magnesium to improve taste and support daily wellness. Its compact, under-sink design makes it easy to install and ideal for families or households looking for consistently high water quality at a reasonable cost.

All product details can be found directly below in the Key Features, How It Works, Specifications, and Service sections.

Key features:
– 5 stages of water purification, including mineralization
– Produces 8 L of drinking water per hour
– Equipped with Ecosoft membrane element
– Tasty water thanks to the mineralization filter
– Filter housing made from EU-manufactured food-grade plastic
– NSF/ANSI 58 certified components guarantee the safety of the materials used in the filters (plastic components are BPA-free)

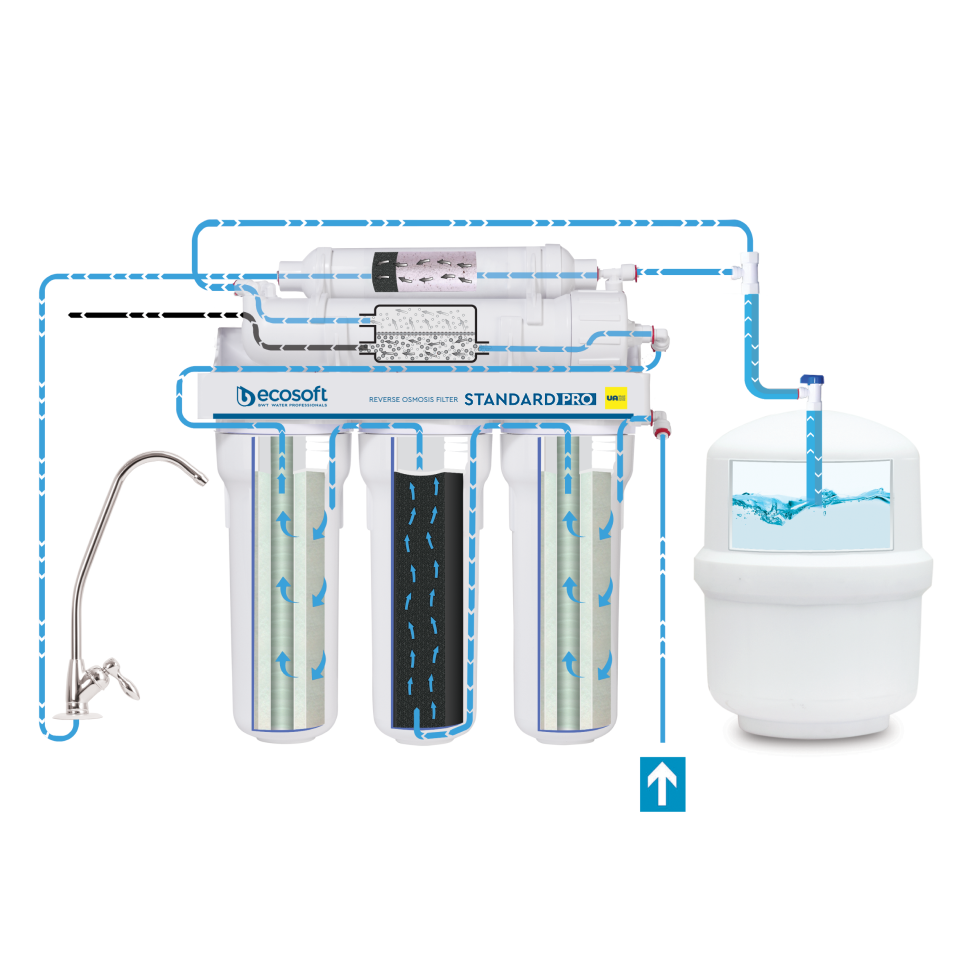

How it works:
Ecosoft Standard PRO Reverse Osmosis Filter delivers high-quality water purification through a multi-stage process, ensuring safe, clean, and great-tasting water for your household. Here’s a detailed overview:
– Mechanical prefiltration (sediment cartridge) – Removes large particles such as sand, silt, and rust, preventing blockages and protecting system components.
– Carbon filtration (activated carbon cartridge) – Effectively removes chlorine, organic impurities, and chemical contaminants, improving water taste and odor.
– Fine mechanical prefiltration – Captures the smallest mechanical particles, extending the lifespan of the reverse osmosis membrane.

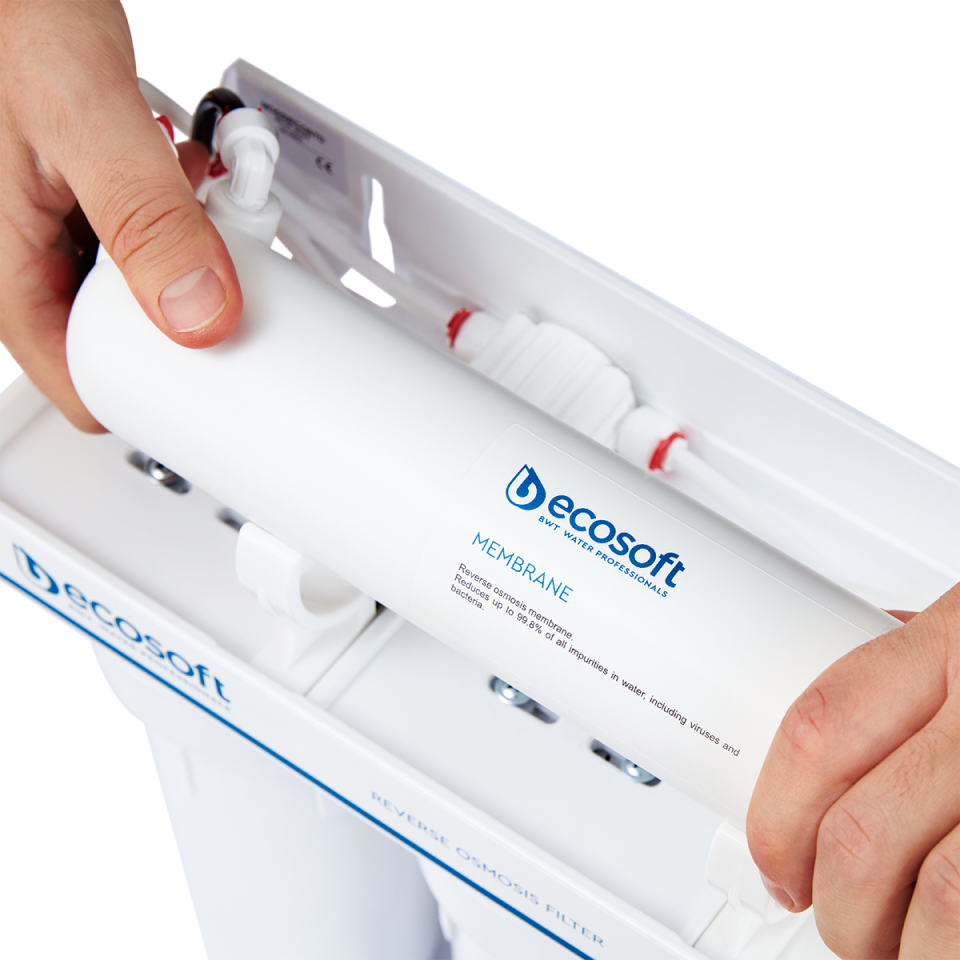

– Reverse osmosis membrane (Ecosoft 50 GPD) – The core element of the system, the membrane filters out up to 99.8% of contaminants, including bacteria, viruses, heavy metals, and nitrates, ensuring microbiologically safe water.
– Mineralization or carbon postfilter – Depending on your configuration, this stage either enriches the water with essential minerals like calcium for better taste and hydration or provides a final polishing step for enhanced taste and odor removal.

Through these advanced filtration steps, the Standard PRO system ensures your family enjoys clean, safe, and mineral-balanced water every day.

Parameters:
– Flow capacity 8 L/h
– Recovery 10-20%
– TDS (purified water) 20-30ppm
– Inlet water pressure 3-6bar
– TDS (inlet water) 1500ppm
– Electrical requirement 230V, 50 Hz

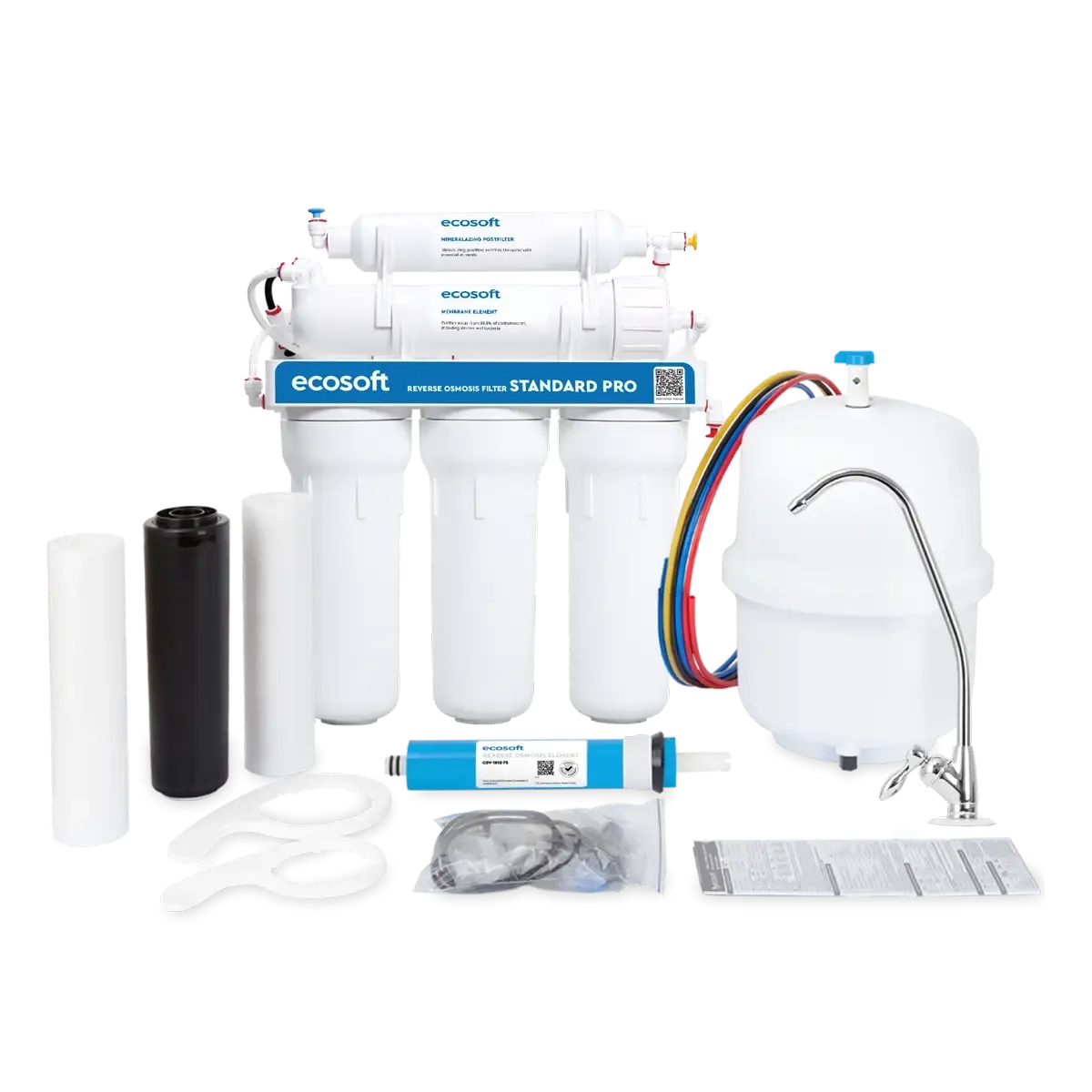

System components:

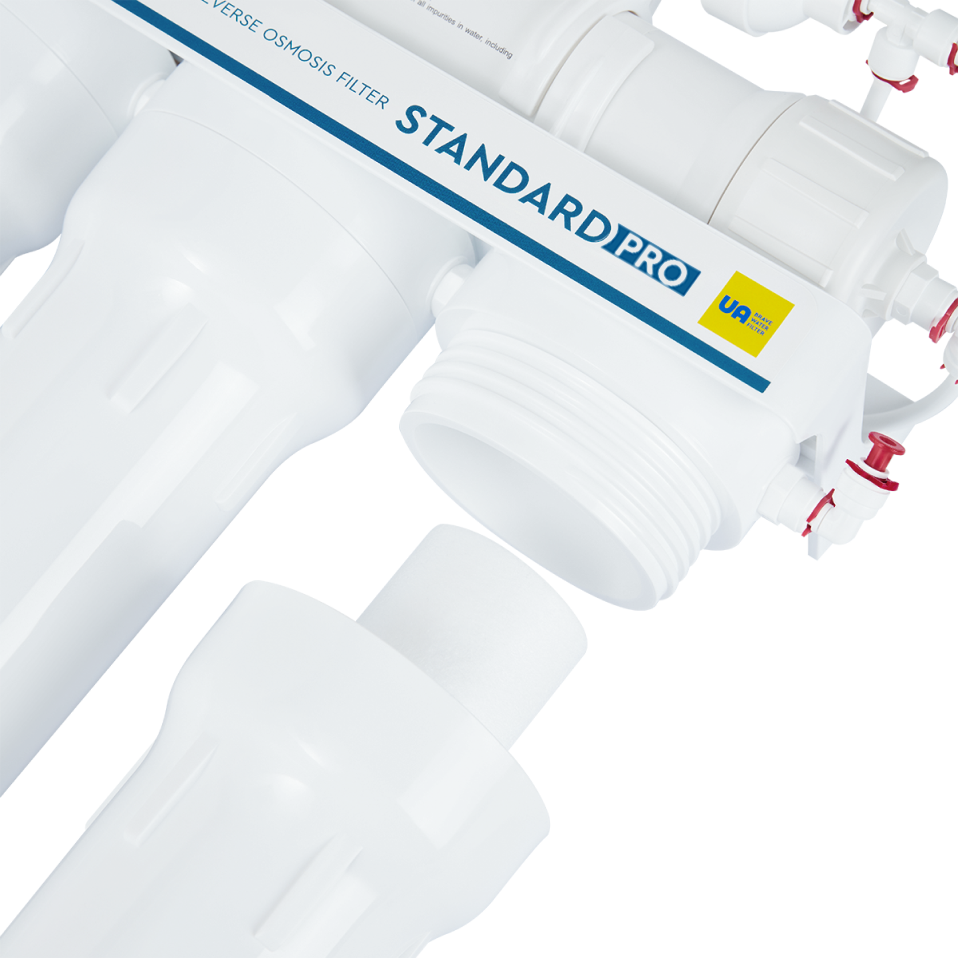

– Filter housing
– Ecosoft pack of pre-filters for reverse osmosis filter

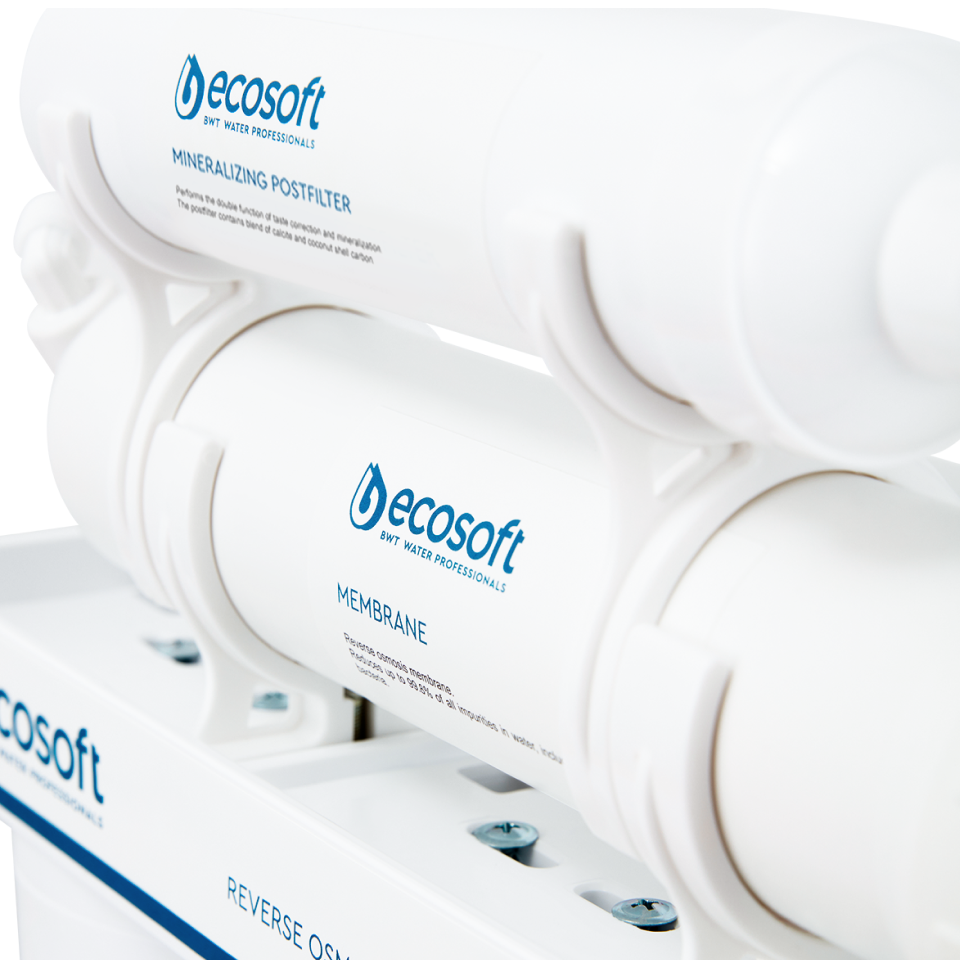

– Ecosoft 50 GPD (190 LPD) membrane element
– Ecosoft mineralization filter
– Chrome ball valve faucet for purified water

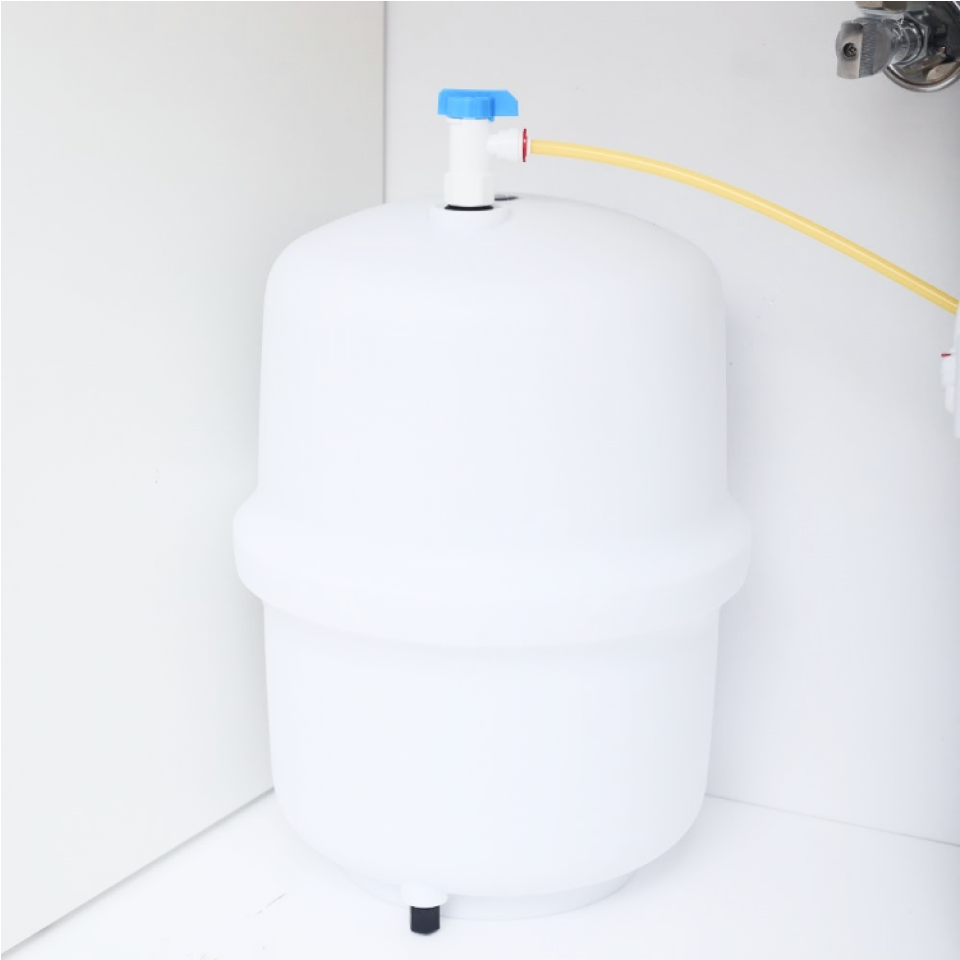

– Plastic pressure tank (total vol. 12 L, usable vol. up to 7 L, BPA-free) and tank valve

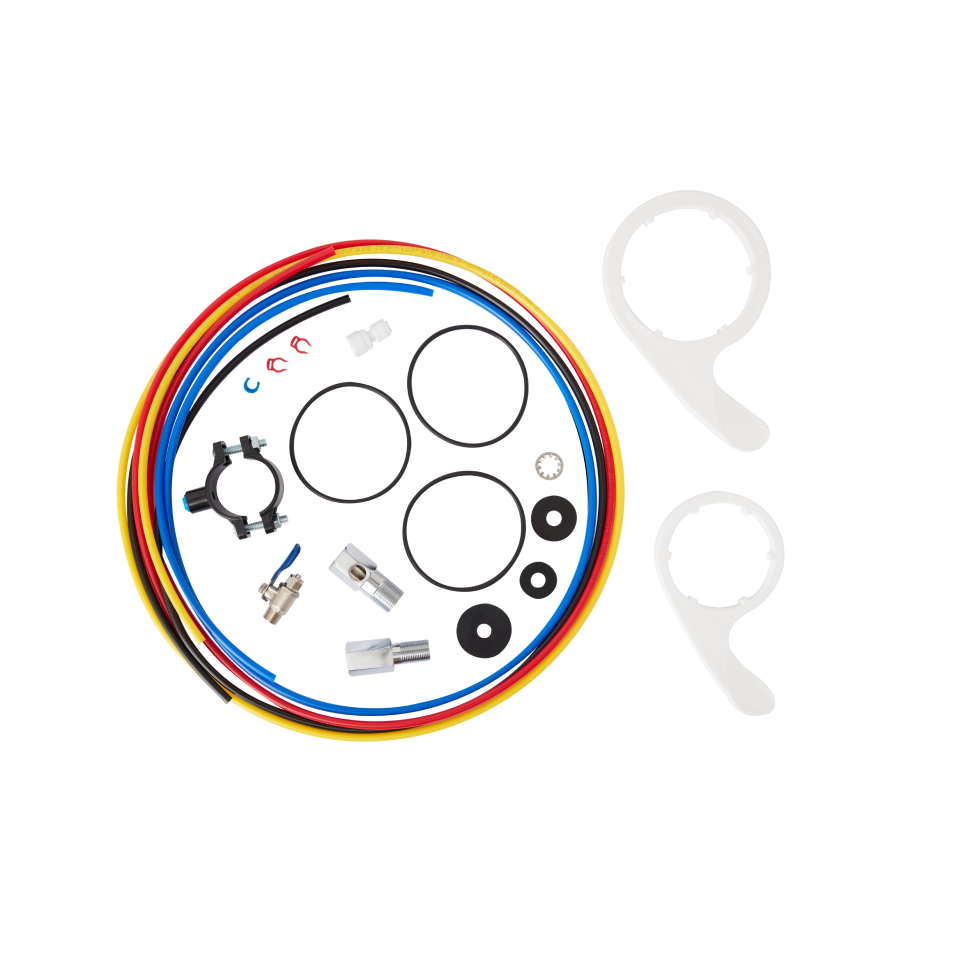

– Feed water adapter, feed valve, drain saddle

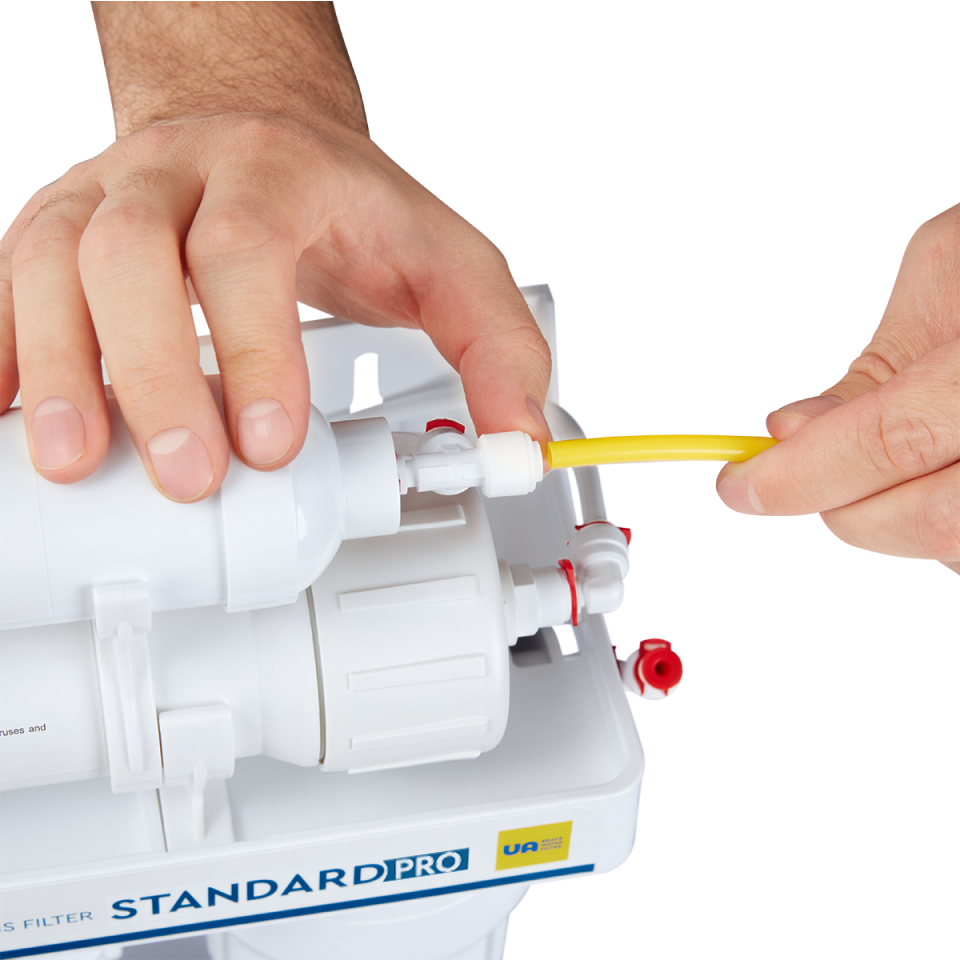

– Pack of color tubes (4 pcs) for convenient filter installation

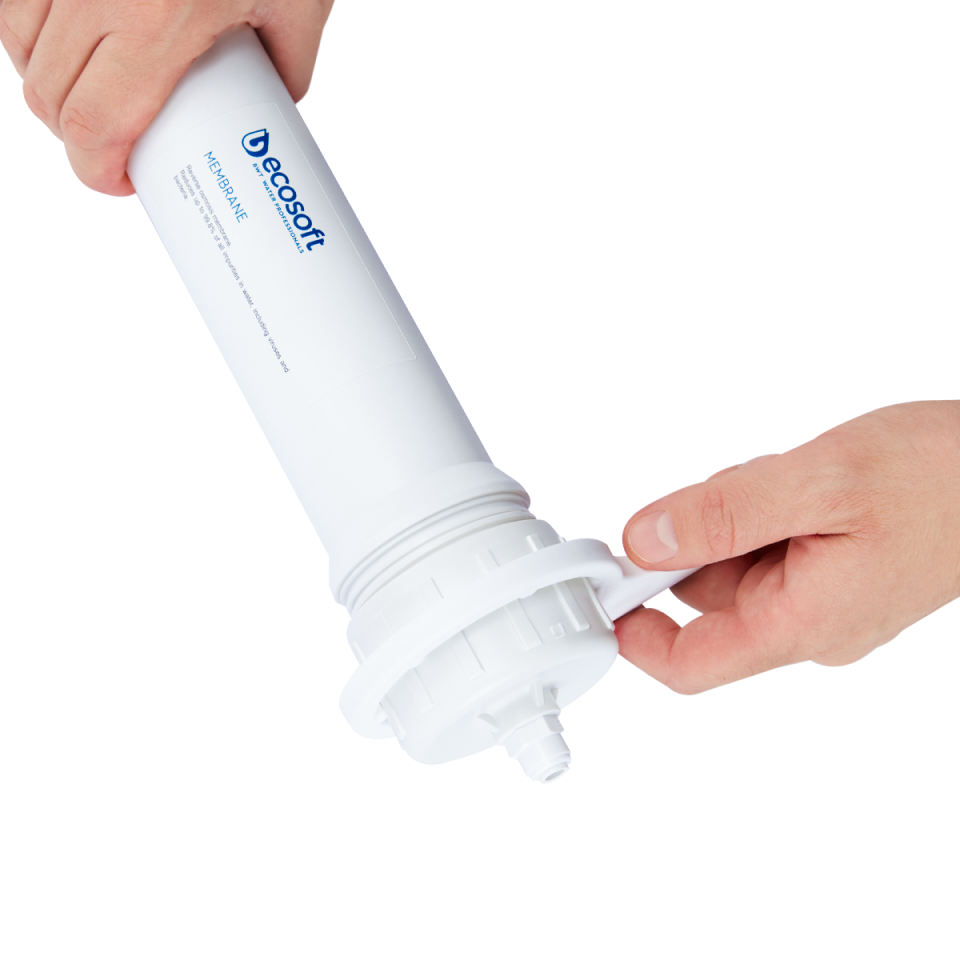

– Service wrenches
– User manual

Filtration technology:
– 5-micron Polypropylene (PP) sediment filter.
– Granular Activated Carbon (GAC) coconut shell filter.
– 1-micron Polypropylene (PP) sediment filter.
– 50 GPD RO membrane element.
– Mineralization filter.

Water after the filter:
– pH: 6.5-7.5
– Total mineral content: 20-30 ppm
– Calcium: <10 ppm
– Magnesium: <1 ppm

Source water requirements:
– pH: 6.5–8.5
– Total dissolved solids: ≤ 1500 ppm
– Hardness: <500 ppm CaCO₃
– Chlorine: ≤ 0.5 ppm
– Total iron: ≤ 0.3 ppm
– Manganese: ≤ 0.1 ppm
– Chemical oxygen demand: ≤ 5 ppm O₂
– Total microbial count (TMC): ≤ 50 CFU/100 ml
– Coliform index: ≤ 3

Service:
Regular replacement of cartridges ensures the effective operation of the Ecosoft Standard PRO reverse osmosis filter with mineralization, providing constant access to clean, safe water with an optimal mineral balance. Following the recommended maintenance schedule extends the system’s lifespan and maintains its performance.

Cartridge replacement schedule:
– Pre-filtration cartridges – every 6 months
– Purani RO-1812-50GPD Membrane: every 24 months
– Mineralizing or carbon postfilter – every 6 months

Replacement Cartridge Filters:
– Purani PX01-10 (stage 1)
– Purani CB05-10 (stage 2)
– Purani CB01-10 (stage 3)
– Purani RO-1812-50GPD Membrane (stage 4)
– Ecosoft PD2010ECO mineralizing postfilter for RO filter (stage 5)

If you plan to stop using the filter for an extended period, it is recommended to shut off the water supply to prevent damage and maintain filter efficiency.

RESOURCES:

Technical data sheet Standard PRO with mineralization

Instructions for connection and operation of the reverse osmosis system
