K268-762-1035-WCBP Water Softener

These softeners provide capacity of 4-4.8m3 of water per hour depending on resin quantity choice (25/30L). The highest flow rate on the market in a compact design cabinet. Pentiar Autotrol valve enables both friendly programming and advanced adjustment to fit domestic or commercial applications.

Purification technology
– Softening Resin for the removal of Total Hardness as CaCO₃
– Also helps reduce iron content and sediment (suspended solids >20µm)

Control valve

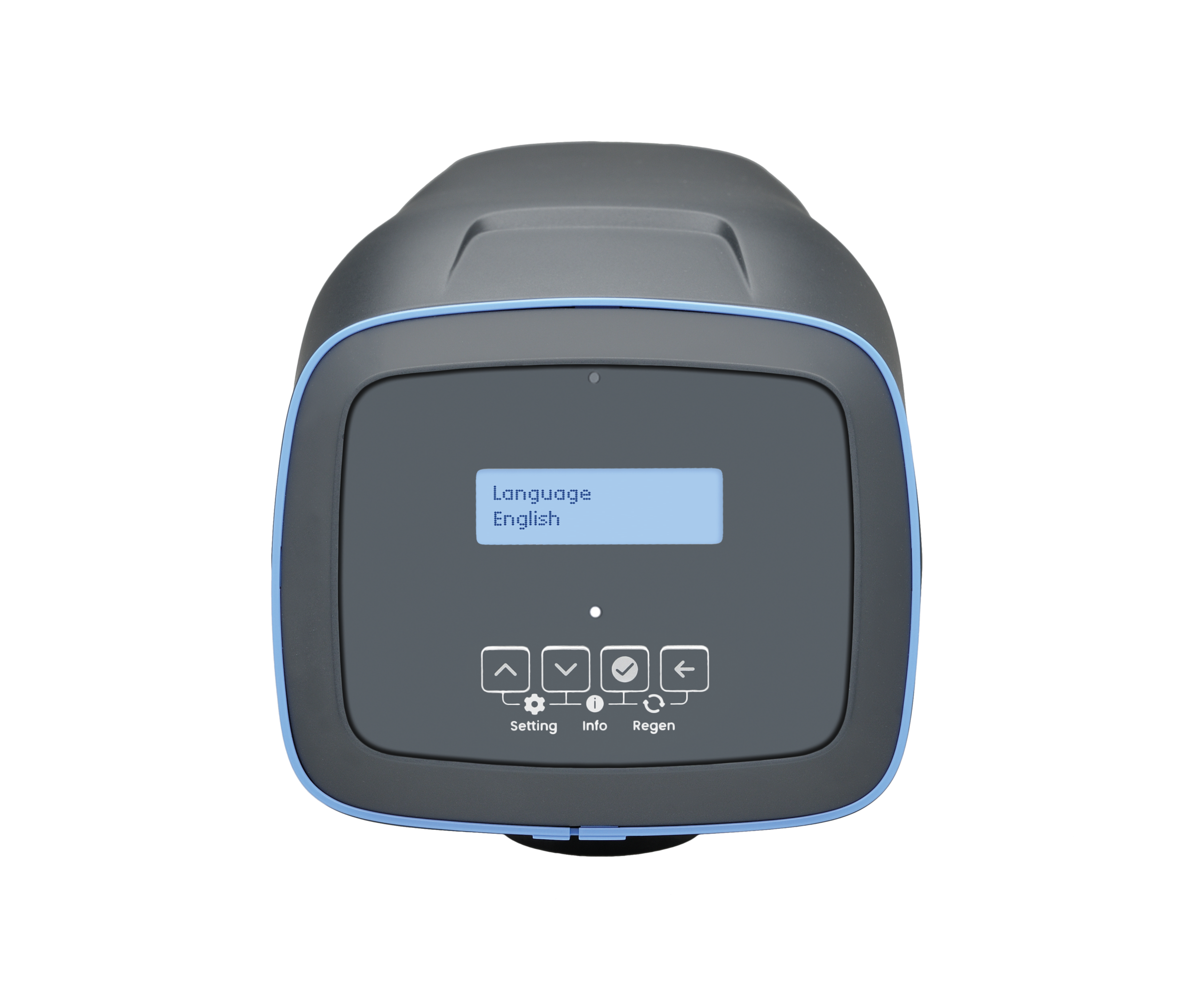

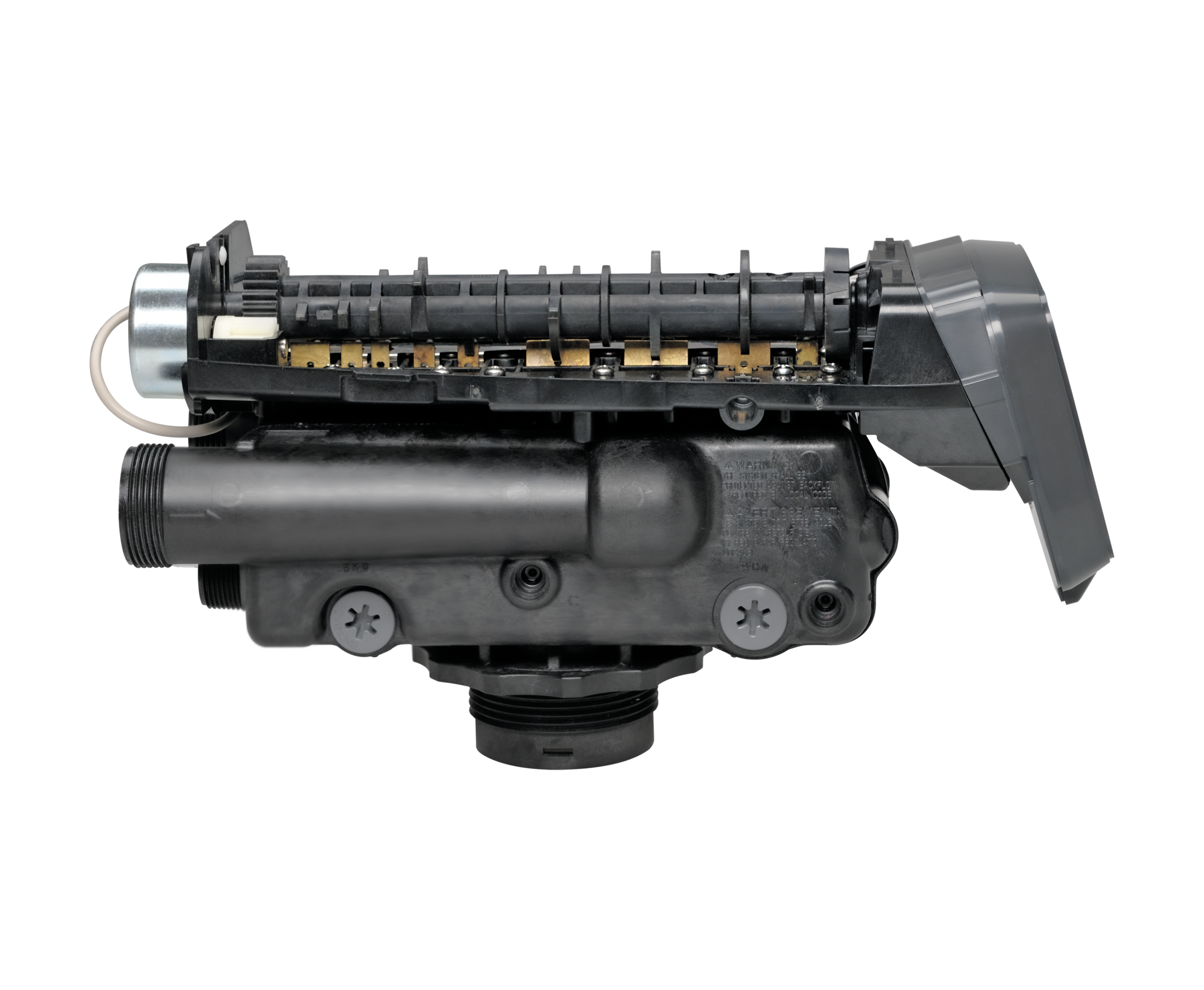

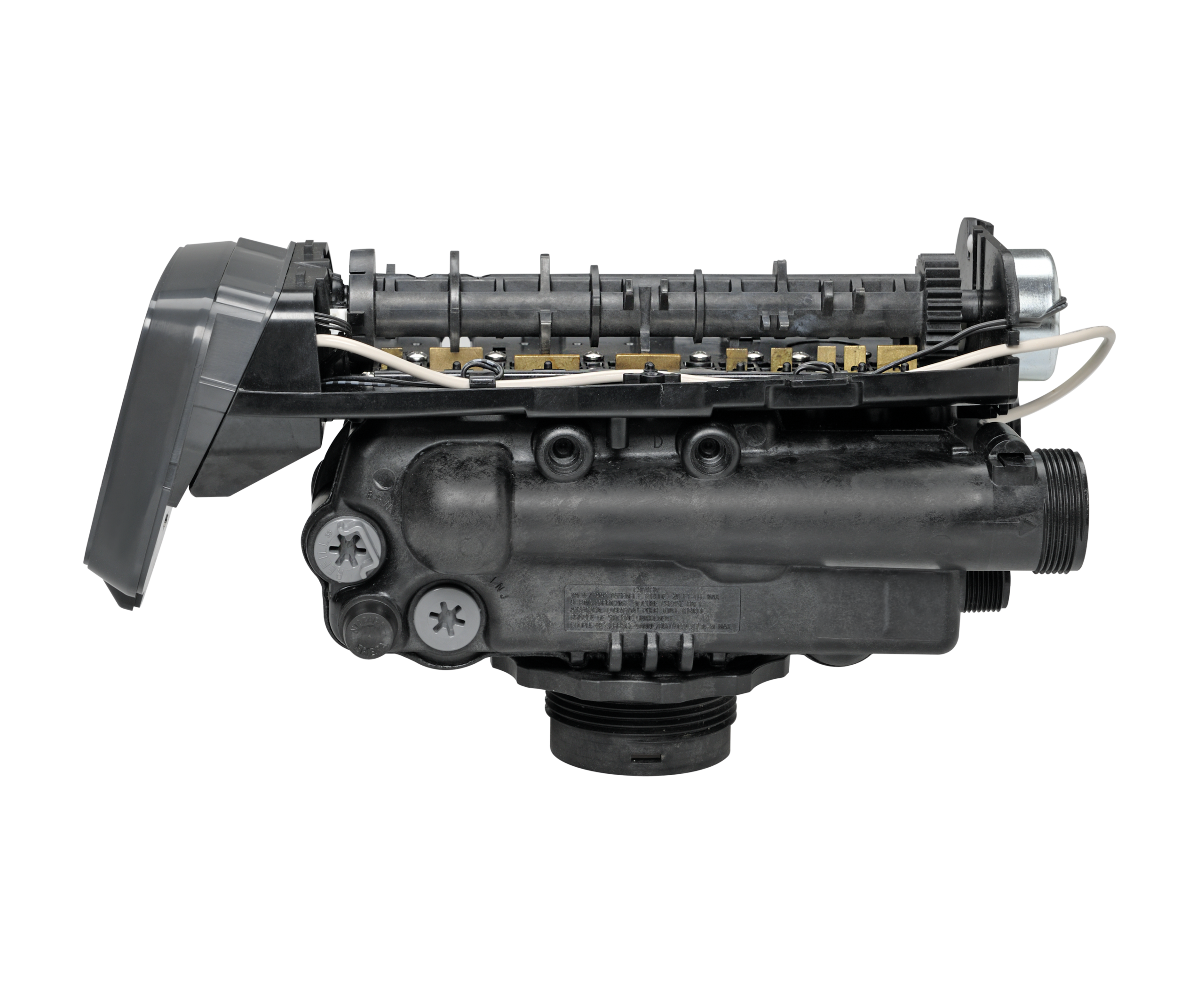

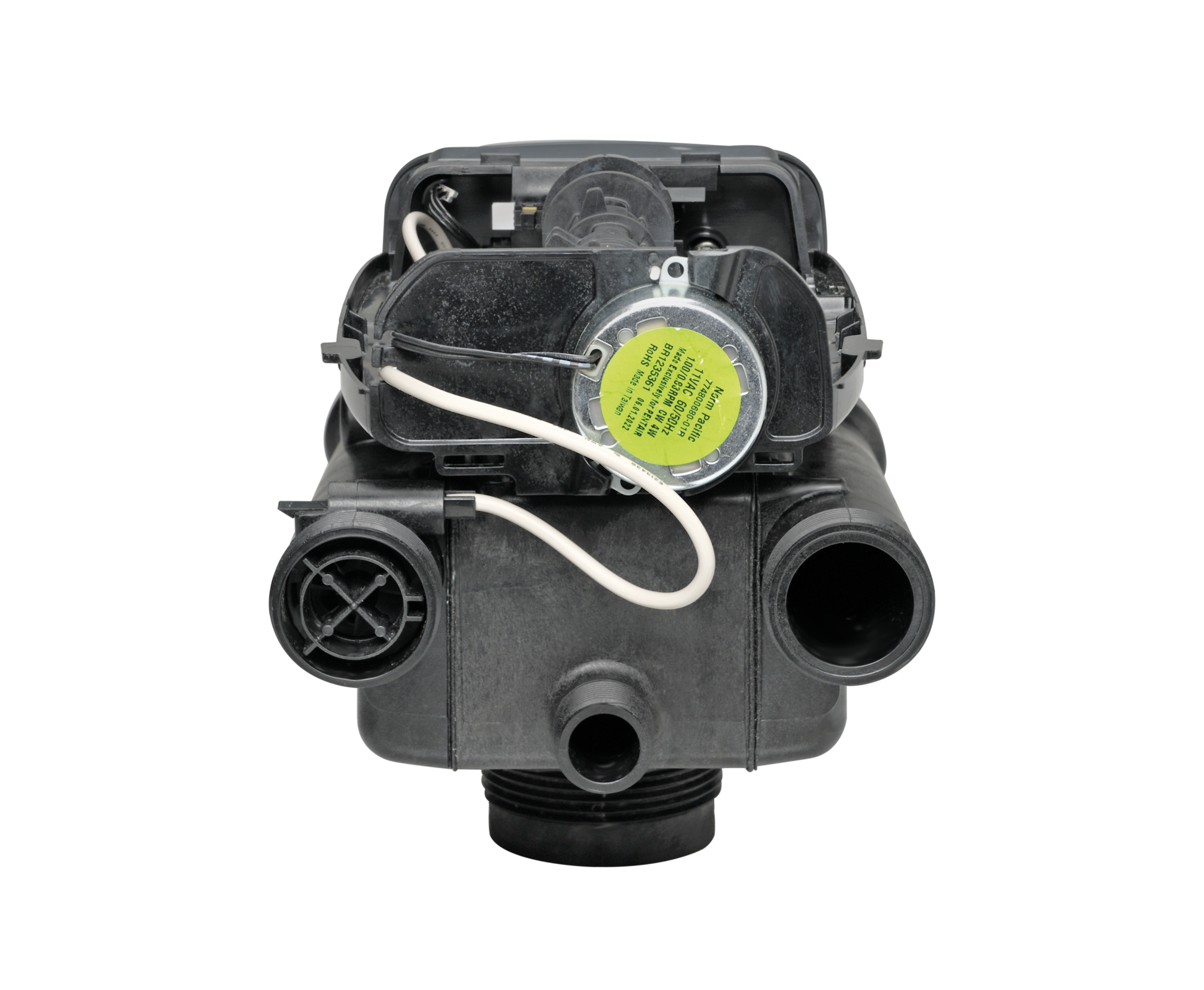

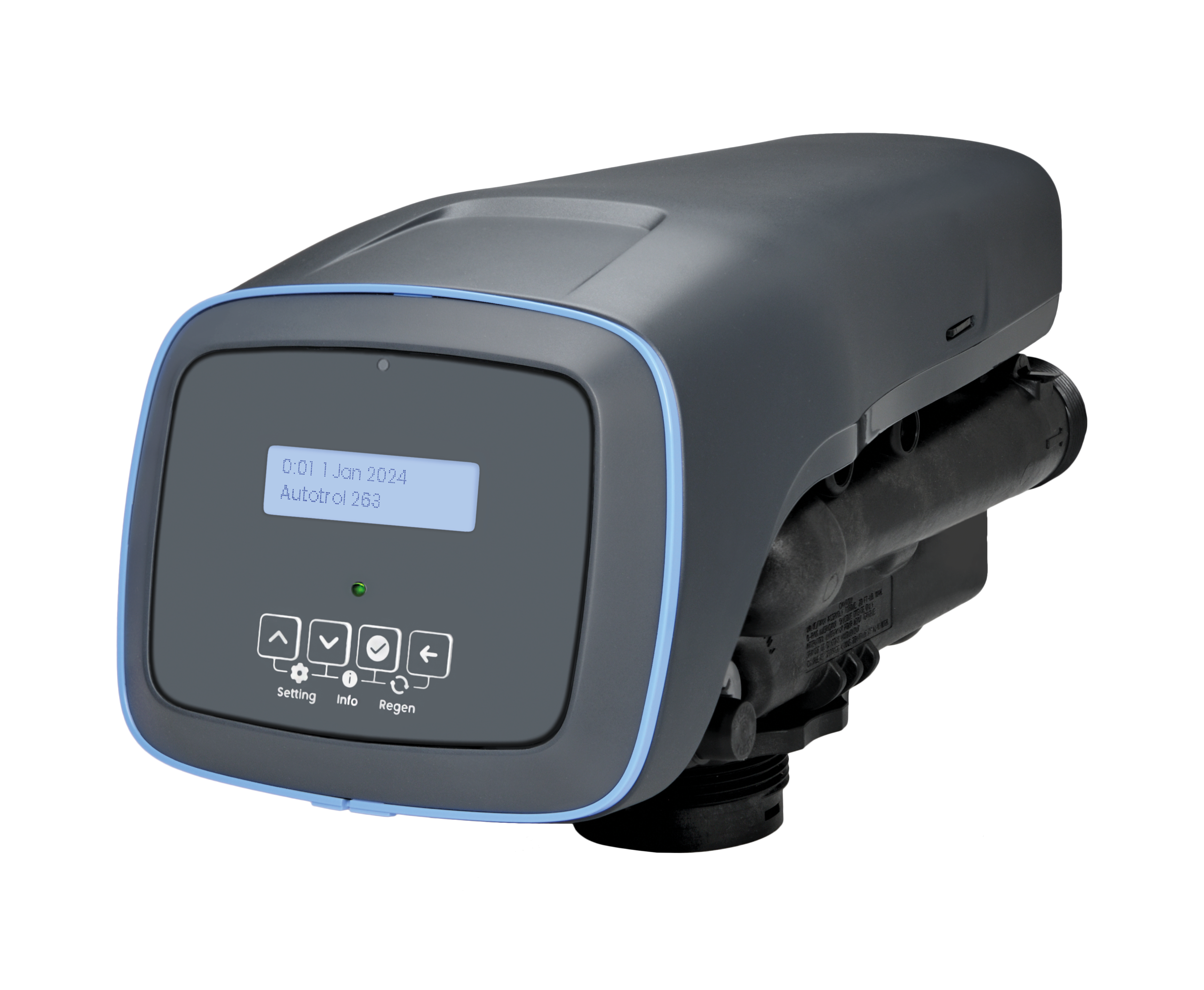

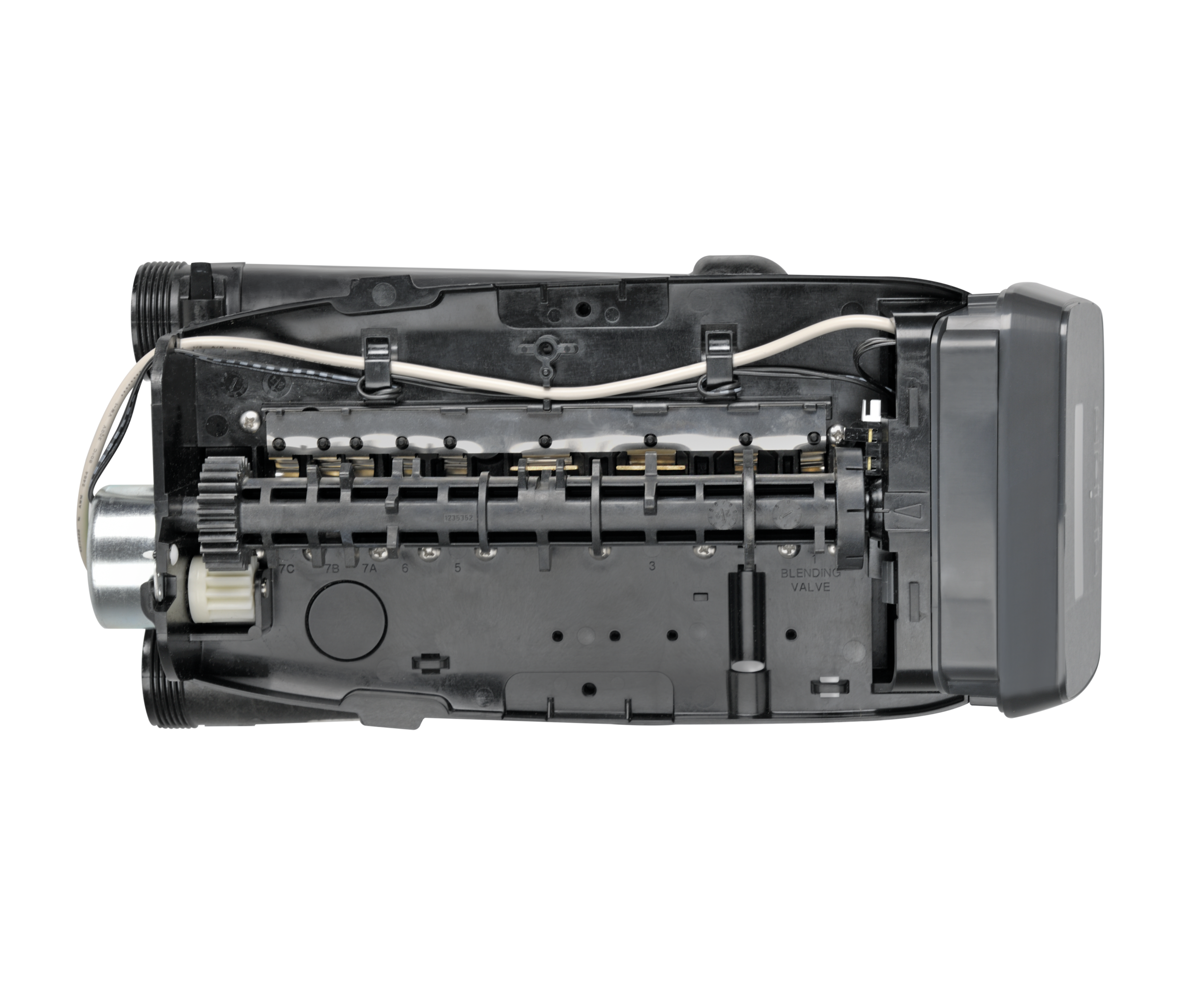

– Pentair Autotrol 268 Performa (time and volume regenerated).

Components
– Pre-adjusted Pentair Autotrol 268 valve with 762 microprocessor control
– 1040930 – Autotrol 1265 Performa Bypass for easy plumbing & water supply continuity during maintenance
– Wave Cyber cabinet enclosure
-Wave Cyber pressure vessel
– Brine well with aircheck brinedraw tube to prevent airlocks in the brineline

Options
– Standard Resin – Purolite C100E
– Chlorine Resistant Resin – Microswitch (regeneration activated)
– Resin Quantity of 25/30L
– 3/4″ or 1″ MBSP pipe adaptor kits (Stainless Steel or ABS Plastic)
– 1267811 Outdoor Cover with Face Shield, Almond

Technical specifications
– Operating flow rate: 1.8 – 2m³/h*
– Maximum flow rate: 4.0-4.8 m³/h*
– Usage of salt per regeneration**: 2.5–4.8 kg
– Usage of water per regeneration: 0.25 m³
– Duration of regeneration: 80–110 minutes
– Pressure drop in service mode: 0.5 bar
– Inlet pressure: 2–6 bar
– Electrical requirements: 230 V, 50 Hz
– Power consumption: 30 W
– Inlet/outlet pipe connections: 3/4″

*Depending on resin volume choice (25/30L
**it is recommended to use Water Softener pelletized salt for regeneration

Feed water requirements
– Hardness: ≤15 meq/L (750 mg/L CaCO₃)
– Iron: ≤0.2 mg/L
– Manganese: ≤0.05 mg/L
– Required level of purification of sediment particles: 100 μm
– Initial water temperature: +4…+30 °C

Resources
Logix 263 268 740 760 742 762 764 Performa Product Brochure #1223489 Rev D FE10
Logix 255 263 268 268FA 740 760 Owners Manual #3003714 Rev E NO08
