Ecosoft Arctic Blue 250 Water Softener

These softeners provide capacity up to 3 m³ of water per hour. The highest flow rate on the market in a compact design cabinet. Clack® CE valve inside enables both friendly programming and advanced adjustment to fit domestic or commercial applications.

Purification technology
– DOWEX® HCR-S/S — provides softened water. Arctic Blue series filters remove hardness.

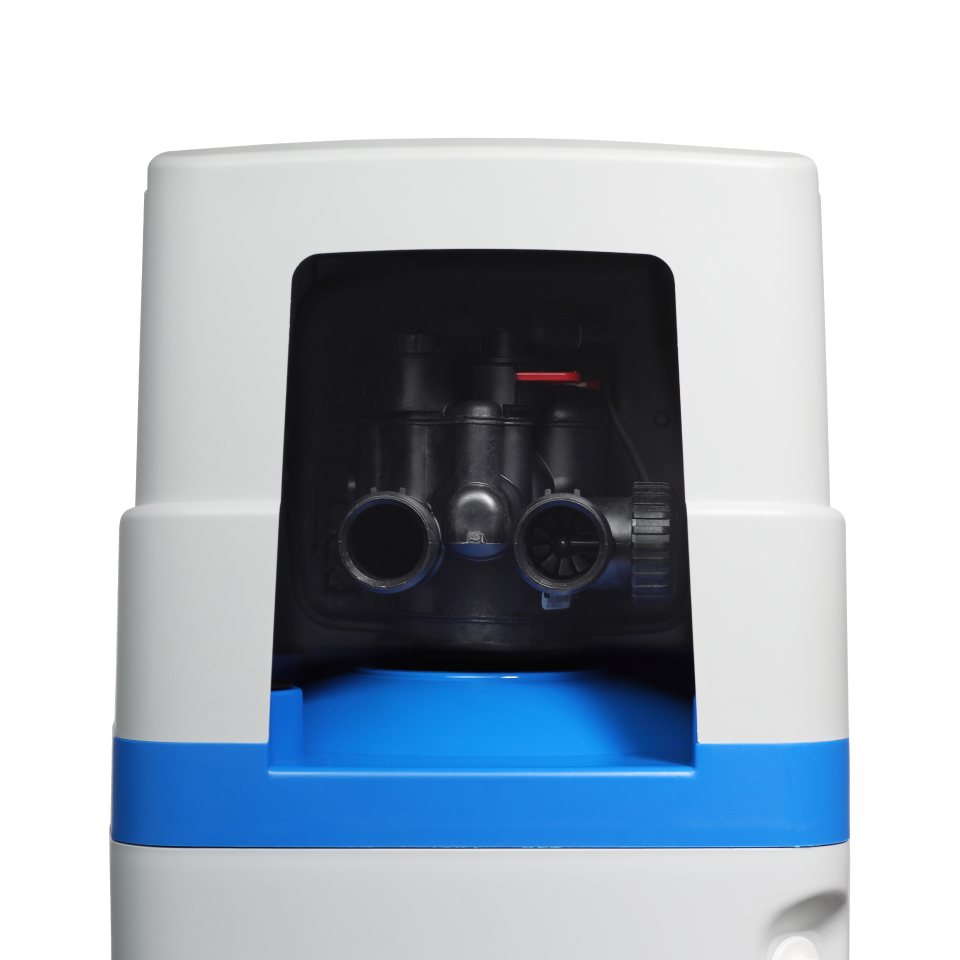

Control valve
– Ecosoft Clack WS1 CE (time and volume regenerated).

Components
– Pre-adjusted Ecosoft-Clack CE
– Cabinet enclosure
-Pressure tank
– Brine well with safety float valve
– Options
– Inline bypass assembly
– Inline external mixing valve
– Motorized No Hard Water Bypass Valve for bypass shutoff during regeneration
– Microswitch (regeneration activated)
– Technical specifications
– Operating flow rate: 1.5 m³/h
– Maximum flow rate: 2.0 m³/h
– Quantity of DOWEX® HCR-S/S: 25 L
– Volume capacity*: 5 m³
– Usage of salt per regeneration**: 2.5–4.0 kg
– Usage of water per regeneration: 0.25 m³
– Duration of regeneration: 80–110 minutes
– Pressure drop in service mode: 0.5 bar
– Inlet pressure: 2–6 bar
– Electrical requirements: 230 V, 50 Hz
– Power consumption: 30 W
– Inlet/outlet pipe connections: 1’’
*for hardness at 5 meq/L (250 mg/L CaCO₃)

**it is recommended to use Ecosil pelletized salt for regeneration

Feed water requirements
– Hardness: ≤15 meq/L (750 mg/L CaCO₃)
– Iron: ≤0.2 mg/L
– Manganese: ≤0.05 mg/L
– Required level of purification of sediment particles: 100 μm
– Initial water temperature: +4…+30 °C

Resources
Ecosoft Arctic Blue Softeners TDS
Ecosoft Arctic Blue 250 Softener – Quick Setup Guide
Ecosoft Arctic Blue Softener Manual
